Add super-fast storage to your Raspberry Pi 5 allowing for lightning fast boots, NAS use, and snappy applications!

NVMe Base is a PCIe extension board for Raspberry Pi 5. Simply populate it with an M-key NVMe SSD (2230 to 2280 sizes supported) and mount it under your Pi for a compact and fast storage solution - It even comes with rubber feet!

It's the perfect solution for turning your Raspberry Pi 5 into a file server, media centre, reverse proxy, etc. - really any task that benefits from large amounts of fast storage, especially with random high operations per second (IOPS) workloads. In short it's a game changer!

NVMe Base follows the new "PIP" design guidelines provided by Raspberry Pi ensuring that it will be easy to use and be supported long term by updates to Raspberry Pi OS.

✨ If you're looking for a smart aluminium case to keep your NVMe setup safe and protected check out our new NVMe Base Case!

Kit Includes

Base Kit

NVMe Base PCB with M.2 Slot (M-Key)
'PCIe Pipe' Flat Flex Cable
4x Rubber feet
M2 bolt and 2x nuts for SSD mounting
4x 7mm M2.5 standoffs for base mounting
8x short M2.5 bolts for base mounting
4x long M2.5 bolts for 'pass-thru' mounting with a HAT

NVMe Base + SSD Bundle

We’re currently unable to offer kits that include NVMe drives due to the volatility of the flash memory market. We’re keeping a close eye on things and hope to bring SSD bundles back once things settle down.

We also offer the kit bundled with a 250GB, 500GB, 1000GB or 2000GB NVMe SSD (PCIe Gen 3 or better).

The Raspberry Pi 5 will run at PCIe 3.0 x 1 speeds at best, even though this mode is unsupported officially, so most drives are limited to around 700-800MB/s read and 350-450MB write at peak.

Due to the tides and vagaries of the SSD market, the brand of drive that we ship may vary. We can say that:

It will have 250GB / 500GB / 1000GB / 2000GB (or better) capacity
It will be rated by the manufacturer at PCIe Gen 3 or better speed
We'll have personally tested the drive with NVMe Base and it will be in the list below.
It'll be backed by the usual Pimoroni guarantees and customer service.

Drive compatibility

We have tested NVMe Base with the following M.2 NVMe drives successfully. We have usually tested one drive from one batch, so this is not comprehensive, or an 'Approved' list, but it's a good guide for drives to seek out:

AData Legend 700
AData Legend 800
AData XPG SX8200 Pro
Axe Memory Generic Drive
Crucial P2 M.2
Crucial P3 M.2
Crucial P3 Plus M.2
Inland PCIe NVMe SSD
Kingston KC3000
Kioxia Exceria NVMe SSD
Kioxia Exceria G2 NVMe SSD
Lexar NM620
Lexar NM710
Netac NV2000 NVMe SSD
Netac NV3000 NVMe SSD
Origin Inception TLC830 Pro NVMe
Sabrent Rocket 4.0
Sabrent Rocket Nano
Samsung 980
Samsung 980 Pro (500GB/1TB)
Team MP33
Western Digital Black SN750 SE (Phison Controller

' Maybe' List. Works with quirks/not ideal.

These drives either needed extra power, were a bit quirky when we tested them or we've had reports of them being problematic. It may just be the drive we had, but they're probably best avoided.

Kioxia BG4 2230. Performance very patchy. Runs at quite a high temp.
Patriot P300 - These drives have various controllers, some of which seem to be incompatible at this time.
Patriot P310 - These drives have various controllers, some of which seem to be incompatible at this time.
PNY CS1030 (250GB). Reports of this size not working.
Samsung 970 EVO Plus. Runs at a higher temp. Some user reports of problems under heavy load or not showing up on boot.
Samsung 980 Pro (250GB). Reports of this size not working.
WD Blue SN550. Our fresh unit could be used as storage but could not be booted from.
WD Red SN700. Slow to boot first time, but worked and booted OK.
WD SN740. Our fresh unit worked well. YMMV.
WD Black SN770. Our fresh unit worked fine. YMMV.

'Avoid' List. We've had problems or reports of problems.

KingSpec NX Series
Kingston OM8SEP4256Q-A0
Transcend 110Q (TS500GMTE110Q)
WD Green/Blue/Red/Black not in the above list. Variable results or not working because of quirks of a SanDisk controller/firmware. Our SN350 and SN570 prevented the RPi 5 from booting at all especially.
Western Digital SN810 256GB

Otherwise most M.2 NVMe drive (Not SATA!) you have lying around should work fine.

Check out our benchmark results over at pibenchmarks.net!

Getting Started

Video: Installing the Pimoroni NVMe Base on Raspberry Pi 5 📹
Learn: Getting Started with NVMe Base for Raspberry Pi 5 💾

Firmware

For the most hassle-free experience, make sure your Raspberry Pi OS is up to date, and your RPi 5 firmware is updated to 2023-12-06 (Dec 6th) or newer. This supports all the features of the RPi PCIe spec and means you don't have to mess with config files to get started.

Software update on the RPi OS should do this for you, but to force it you can:

open a Terminal (Ctrl-Alt-T)
run sudo raspi-config and choose 'Latest' under Advanced Options > Bootloader Version.

Running sudo rpi-eeprom-update in the Terminal will tell you which version of firmware is running.

PCIe 3 Mode

To enable experimental and not-officially-supported PCIe 3 mode, add the follow line to the [all] section at the end of your Raspberry Pi /boot/firmware/config.txt file like this:

[all]
dtparam=pciex1_gen=3

Save and reboot - your drive is ready to use!

Formatting the NVMe and booting from NVMe

If you want to boot from the NVMe drive, follow these extra steps:

Make sure your firmware is updated as above!
Format the drive using Raspberry Pi Imager
You can do this with your NVMe Base installed by booting the RPi 5 from SD card and running Raspberry Pi Imager from the start menu.
Open a Terminal (Ctrl-Alt-T).
Run sudo raspi-config
Choose NVMe/USB boot under Advanced Options > Boot Order.
Reboot your RPi 5.

Notes

Always power off your RPi and disconnect the power supply before installing or uninstalling the NVMe Base.
NVMe Base offers a general purpose PCIe x1 connection - while we know most people want to add fast storage in theory you can use other devices with it, we just can't help you make them work! :-D What Would Jeff (Geerling) Do?

Resources

Dimensional drawing
3D model (PNG / STEP)

Raspberry Pi 5 Essentials

Raspberry Pi 5 Official 27W PSU

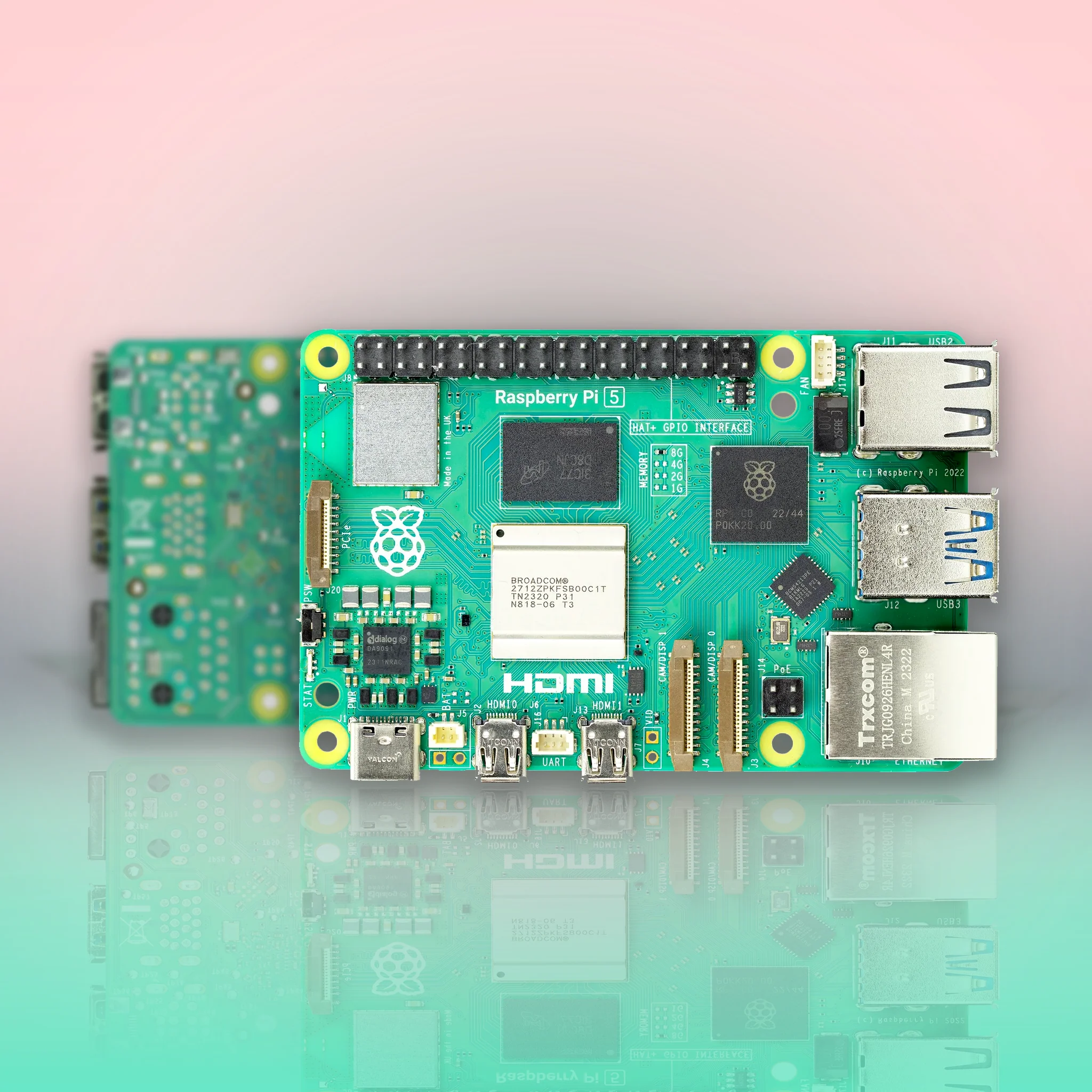

Raspberry Pi 5
